Husky Build-Out Mount DXF Digital Download

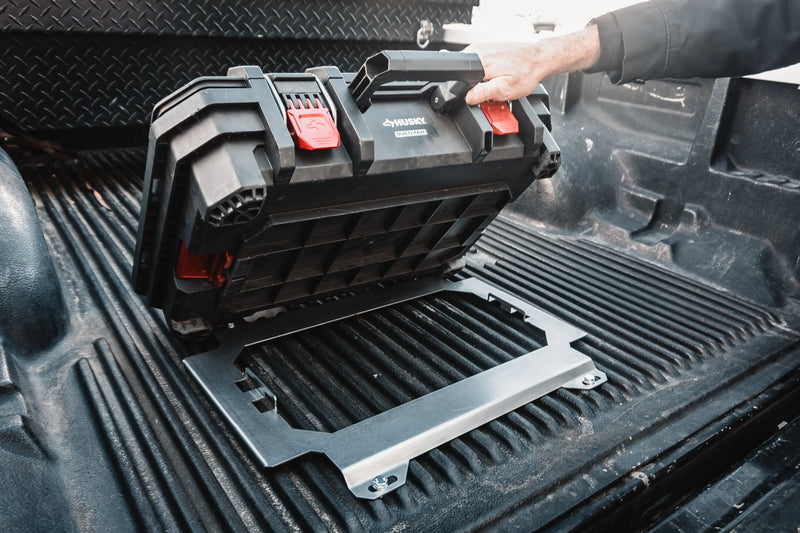

A DXF file for cutting your own Husky™ Build-Out™ slim, low-profile mounting plate on a plasma, laser or waterjet machine. This mount works with Husky Build-Out boxes with red latches only. It is not compatible with non-red-latch versions. For all Husky Build-Out boxes, see our Locking Mounting Plate.

This is the file we use in our regular production. The vectors are clean and closed and cut ready, so there is no cleanup before you cut. It is tried and true. Recommended minimum material is 23" × 18", so you can turn scrap sheet into something useful.

Frequently Asked Questions

Do you sell the finished plate?
Yes. See the Non-Locking Mounting Plate (red latch boxes) and the Locking Mounting Plate (all boxes).

Can I sell what I cut?
Yes. You can make and sell your own finished physical products. Please do not resell, share or redistribute the file itself.

Need a format other than DXF?
Message us after purchase and we will do our best to provide it in an alternative format.

Can I get a refund?
Digital downloads are final sale. If you have trouble with a file, message us and we will help. See our returns policy.

Designed in California — BOCO Custom LLC. Husky™ and Build-Out™ are trademarks of their respective owners. BOCO Custom LLC is not affiliated with them.

10-Gauge Steel (0.1345" | Thickness of Two Stacked Dimes)

• Best For: Heavy-duty commercial wall mounts, shop workbenches, and massive modular tool stacks.
• The Advantage: Extreme structural stiffness. This ultra-thick steel completely eliminates flexing, twisting, and tool rattling, making it the definitive choice for demanding daily job-site use.

12-Gauge Steel (0.1046" | Thickness of a Standard House Key)

• Best For: Mobile service vans, enclosed trailers, and standard shop organization layouts.
• The Advantage: The ultimate sweet spot between bulletproof strength and smart weight distribution. It handles constant over-the-road vibrations flawlessly without adding unnecessary bulk to your mobile rig.

14-Gauge Steel (0.0747" | Thickness of a Nickel)

• Best For: Handheld battery organizers, small tool holsters, and lightweight shelf accessories.
• The Advantage: High-tensile rigidity in a streamlined profile. It provides a rock-solid, permanent mount for smaller gear while keeping your workspace layout clean and low-profile.

8-Gauge Aluminum (0.1285" | Heavy-Duty Marine Grade)

• Best For: Open truck beds, roof racks, exterior trailer sides, and high-moisture environments.
• The Advantage: Maximum corrosion resistance with severe weight savings. Shaved pounds keep your mobile fuel efficiency optimized while remaining completely immune to rain, snow, and road salt oxidation.

10-Gauge Stainless Steel (0.1345" | Thickness of Two Stacked Dimes)

• Best For: Premium exposed truck bed brackets, marine applications, high-end shop builds, and ultimate weather protection.
• The Advantage: Combines the absolute, unyielding structural rigidity of our thickest 10-gauge plate with total lifetime corrosion resistance. It requires no paint or powder coat to stay 100% immune to rust, road salt, and harsh outdoor elements.

Note: Sheet metal gauge numbers run inversely—the lower the gauge number, the thicker and more rigid the actual metal substrate is.

We fabricate our mounting solutions and accessories using commercial-grade materials built for harsh environments. Choose the right finish for your build and review our care recommendations below:

Raw Steel

• Overview: Shipped bare and untreated directly from fabrication. Ideal for custom painting, powder coating, or welding into custom racks.
• Appearance: May feature light mill scale, surface scuffs, or minor flash rust upon delivery, which is standard for raw metal stock.
• Care & Maintenance: Raw steel will rust when exposed to moisture, humidity, or air. We strongly recommend surface preparation (sanding/cleaning) and applying a coat of paint, clear coat, or powder coat prior to installation.

Powder Coated

• Overview: Finished with a heavy-duty, thermo-fused polymer coating engineered for extreme wear, corrosion resistance, and UV protection.
• Appearance: Smooth, professional, and uniform matte/satin black finish ready for immediate installation out of the box.
• Care & Maintenance: Clean using warm water, mild dish soap, and a soft microfiber cloth. Avoid solvent-based chemicals (such as acetone or paint thinner) or abrasive scrubbers, as these can wear down the protective coating. Touch up deep gouges or scratches promptly to preserve the underlying metal.

Raw Aluminum

• Overview: A premium, lightweight option offering maximum natural rust resistance. Ideal for outdoor truck beds, work vans, and marine applications.
• Appearance: Bare metal with a clean industrial look. Naturally forms a thin protective oxide film to prevent deep corrosion. Light surface grain or manufacturing tool marks may be present.
• Care & Maintenance: Completely rust-proof. Maintain by washing with standard automotive soap and water. If desired, restore or brighten the bare surface over time using a standard aluminum polish.

Raw Stainless Steel

• Overview: Engineered for maximum structural strength, severe weather resistance, and high chemical tolerance.
• Appearance: High-grade, bare metal finish providing a clean, rugged aesthetic without requiring additional coatings or paint.
• Care & Maintenance: Highly low-maintenance and naturally corrosion-resistant. Clean with soapy water or a dedicated stainless steel cleaner to remove grease, road grime, and fingerprints.
