Precision-Engineered Cut Files for High-Quality Metal Art
Grab this precision Mexico Coat of Arms DXF file and get clean, accurate cuts on your Plasma, Laser, or Waterjet CNC machine right away. Designed and carefully verified right here in Southern California, USA by BOCO Custom, this file ensures smooth results with no wasted material or guesswork. Celebrate Mexican heritage with this highly detailed, iconic eagle and serpent emblem layout—perfect for festive cultural displays, custom steel wall signs, and premium patriotic decor.
WHY YOU'LL LOVE IT
-
Plasma & Laser Ready: Fully optimized for smooth paths in Aspire, Fusion 360, LightBurn, SheetCAM, EnRoute, and more.
-
Tested & Verified: Cut and checked on our own ShopSabre Plasma Table, Xtool P2 Laser, and Gweike M3 Ultra Laser to eliminate errors.
-
Scalable Vector Paths: Clean, closed vectors allow you to infinitely adjust the sizing without losing design quality or crisp edge fidelity.
-
Instant Access: Get your digital files immediately after purchase so you can start cutting today.
| FEATURES & SPECIFICATIONS |
| File Format |
High-Quality DXF (Clean, closed vectors) |
| Units/Scale |
Inches primary (fully scalable) |
| CNC Compatibility |
Plasma, Laser, Waterjet, Router |
| Commercial License |
Permitted for selling physical cut items (No digital file resale) |
| Origin |
Designed & Made in USA — BOCO Custom |
USAGE NOTES
- Download the zip package instantly after purchase and extract the source geometry.
- Import the DXF vector layout straight into your preferred machine's CAM tooling software.
- Set your kerf or cut width offsets based on your shop's machinery configurations and start burning!
Perfect for: Heritage wall art, custom entry gates, corporate signs, family monograms, and personalized Mexican pride decorations.
FREQUENTLY ASKED QUESTIONS
Is this a physical sign or emblem product?
No. This listing is for an instant digital download of a DXF file path framework only. No physical metal art or tracking hardware will be shipped.
Can I sell items fabricated using this file?
Yes! You are completely free to use this file to fabricate and sell finished, physical products. However, you may not resell, redistribute, or share the digital design file itself.
Is the line art clean enough for thin steel plasma cutting?
Absolutely. We use this exact file path configuration in-house on 10-gauge steel setups. Node distribution is meticulously cleaned to avoid torch dwell marks, sputtering, or jagged corner blowouts.
Patriotic Design for Eye-Catching Displays

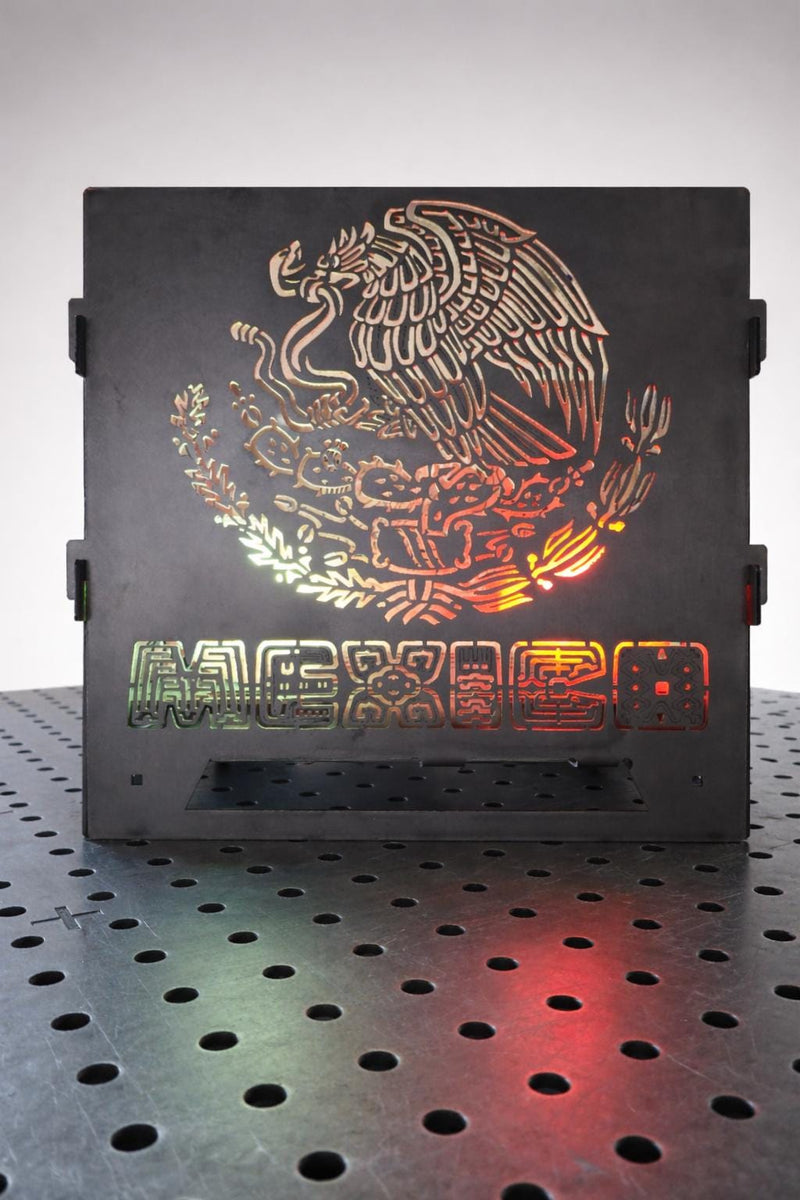

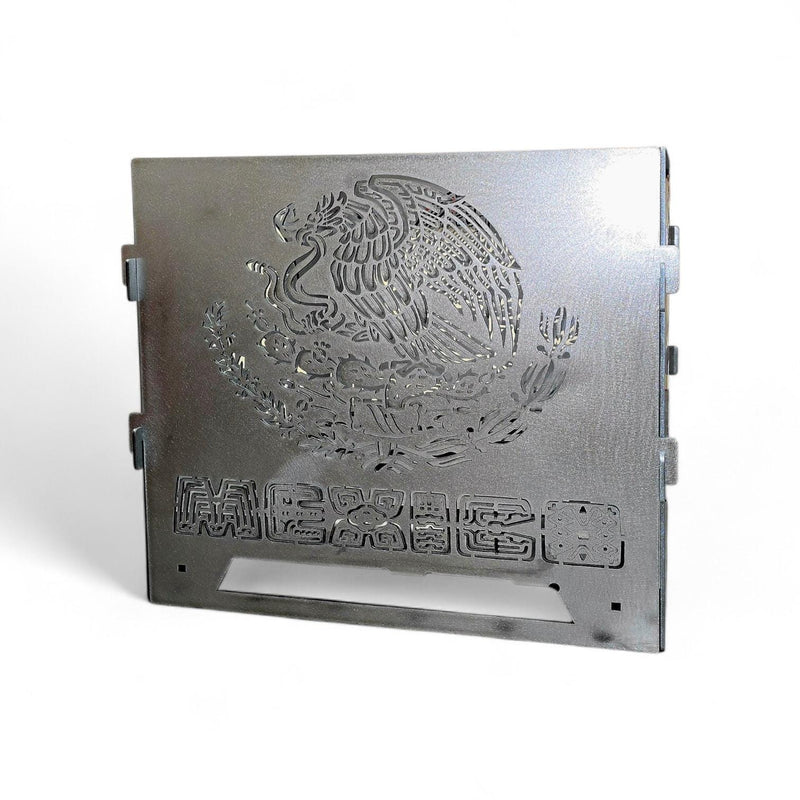

This Mexico Coat of Arms DXF design file is crafted for professional fabricators and hobbyists who want to produce clean, striking cultural artwork. The iconic eagle perched on the cactus with the serpent layout delivers impressive visual contrast when cut into raw or powder-coated steel. It provides small businesses and craft shops an excellent anchor piece for custom residential signage or storefront displays. Because the vector lines are built to strict workshop standards, your tooling software will map the torch paths flawlessly on the first pass.
Easy Digital Download for Fast Production
Delivered immediately as a digital download package, this file allows you to bypass messy node tracing or manual sketching adjustments completely. The geometric outlines are entirely closed to ensure that your laser or plasma torch moves efficiently without freezing or stuttering at tight intersections. Whether you are running complex commercial sheet layouts or building a singular gift piece, it streamlines your manufacturing timeline so you can get parts into shipping boxes faster.
Perfect for Intricate Metal Art and Custom Signs
The scalability of this artwork format means it transitions cleanly from heavy steel yard stakes down to finer acrylic or custom wood engraving builds. It acts as an incredible design canvas that pairs beautifully with bold lettering or custom framing treatments. For custom builders and metal shops looking to add reliable, high-demand heritage designs into their catalog listings, this ready-to-cut vector structure serves as a dependable, highly repeatable choice.
10-Gauge Steel (0.1345" | Thickness of Two Stacked Dimes)
- Best For: Heavy-duty commercial wall mounts, shop workbenches, and massive modular tool stacks.
- The Advantage: Extreme structural stiffness. This ultra-thick steel completely eliminates flexing, twisting, and tool rattling, making it the definitive choice for demanding daily job-site use.
12-Gauge Steel (0.1046" | Thickness of a Standard House Key)
- Best For: Mobile service vans, enclosed trailers, and standard shop organization layouts.
- The Advantage: The ultimate sweet spot between bulletproof strength and smart weight distribution. It handles constant over-the-road vibrations flawlessly without adding unnecessary bulk to your mobile rig.
14-Gauge Steel (0.0747" | Thickness of a Nickel)
- Best For: Handheld battery organizers, small tool holsters, and lightweight shelf accessories.
- The Advantage: High-tensile rigidity in a streamlined profile. It provides a rock-solid, permanent mount for smaller gear while keeping your workspace layout clean and low-profile.
8-Gauge Aluminum (0.1285" | Heavy-Duty Marine Grade)
- Best For: Open truck beds, roof racks, exterior trailer sides, and high-moisture environments.
- The Advantage: Maximum corrosion resistance with severe weight savings. Shaved pounds keep your mobile fuel efficiency optimized while remaining completely immune to rain, snow, and road salt oxidation.
10-Gauge Stainless Steel (0.1345" | Thickness of Two Stacked Dimes)
- Best For: Premium exposed truck bed brackets, marine applications, high-end shop builds, and ultimate weather protection.
- The Advantage: Combines the absolute, unyielding structural rigidity of our thickest 10-gauge plate with total lifetime corrosion resistance. It requires no paint or powder coat to stay 100% immune to rust, road salt, and harsh outdoor elements.
Note: Sheet metal gauge numbers run inversely—the lower the gauge number, the thicker and more rigid the actual metal substrate is.
