DXF Files for CNC Cutting | Husky Build-Out Slim File Digital Download

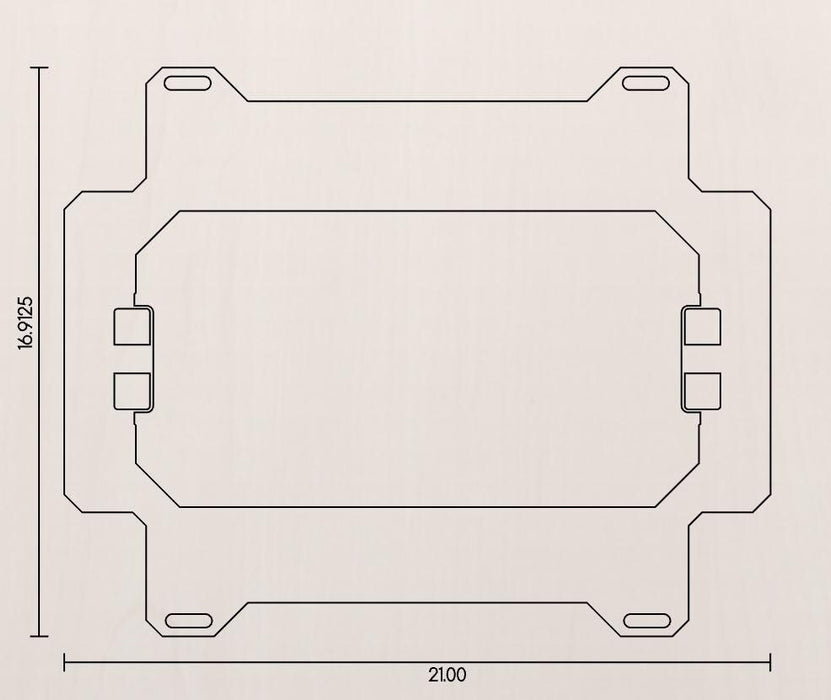

Grab this precision DXF file and start cutting your Husky Build-Out slim mounting plate right away on your Plasma, Laser, or Waterjet CNC machine.

Designed and carefully verified right here in Southern California 🇺🇸 by BOCO Custom — exact fit, clean cuts, no wasted material, no alignment issues.

Ideal for fabricators creating low-profile, light-duty steel mounts for garage walls, work trucks, trailers, ATVs, or shop organization — a durable steel upgrade over plastic alternatives.

Why you'll love this DXF
✅ Inches AND Metric Provided — Universal compatibility — no manual conversion required
✅ Ready-to-Cut Design — Pre-formatted, tested layout — load and cut immediately, no cleanup or redrawing needed
✅ Recommended Gauge — Designed & proven on 14 gauge steel — perfect for slim, low-profile builds with reliable strength
✅ Software Compatibility — Optimized for Aspire, Fusion 360, EnRoute, SheetCAM, LightBurn, and most other CNC/plasma/laser programs
✅ Instant Digital Download — Files available immediately after purchase — start fabricating the same day

Usage & License
✅ You’re welcome to use these files to create and sell your own finished physical products (mounting plates, custom storage solutions, etc.)
✅ Please do not resell, share, distribute, or modify and redistribute the DXF files themselves in any way — this protects the original design

Important Digital Product Info
➤ This is a digital download only – no physical item will be shipped
➤ File delivered via Etsy instant download link (ZIP containing inches and metric versions)
➤ As a digital product, all sales are final and non-refundable

What's Included
➤ A High-quality DXF files

Download now and fabricate reliable Build-Out mounts with pro-level precision. Your shop or garage setup deserves designs that perform. 🛠️

Thanks for supporting a small USA maker! And remember, we support you too! If you run into any issues with the file (e.g., compatibility or download problems), please message us right away — We're here to help get you cutting successfully!

Raw Steel: Ships as bare metal—affordable, no added finish cost, and quickest to produce/ship. Ideal if you plan to paint it yourself, weld it further, or want a custom look (e.g., intentional patina or rattle-can paint). Note: Mild steel rusts quickly when exposed to moisture/humidity—store indoors and apply protection soon if used outdoors or in damp garages. Great for budget builds or immediate DIY finishing.

Powder Coat: A baked-on, professional-grade finish (textured black standard). Much tougher than regular paint—resists chips, scratches, fading, and rust far better. Provides excellent protection for job-site, vehicle, or outdoor use (like tool mounts in vans or garages). Adds a small upcharge but delivers a premium, long-lasting look with minimal maintenance. Powder coat also helps hardware stay functional longer by reducing wear.

How do I choose the right gauge for my project?

• Choose thicker gauges (10 or 11) for heavy-duty strength, structural parts, or high-load applications. Example: Using the plate on a horizontal application such floor or dolly.
• Choose thinner gauges (14) for lighter-weight parts, panels, or where cost matters more. Ideal for vertical applications suck as wall or bedside mount.

Why does gauge go backward (lower number = thicker)?
The gauge system originated from the number of draws needed to produce wire/sheet of that thickness. Fewer draws = thicker material = lower gauge number.
