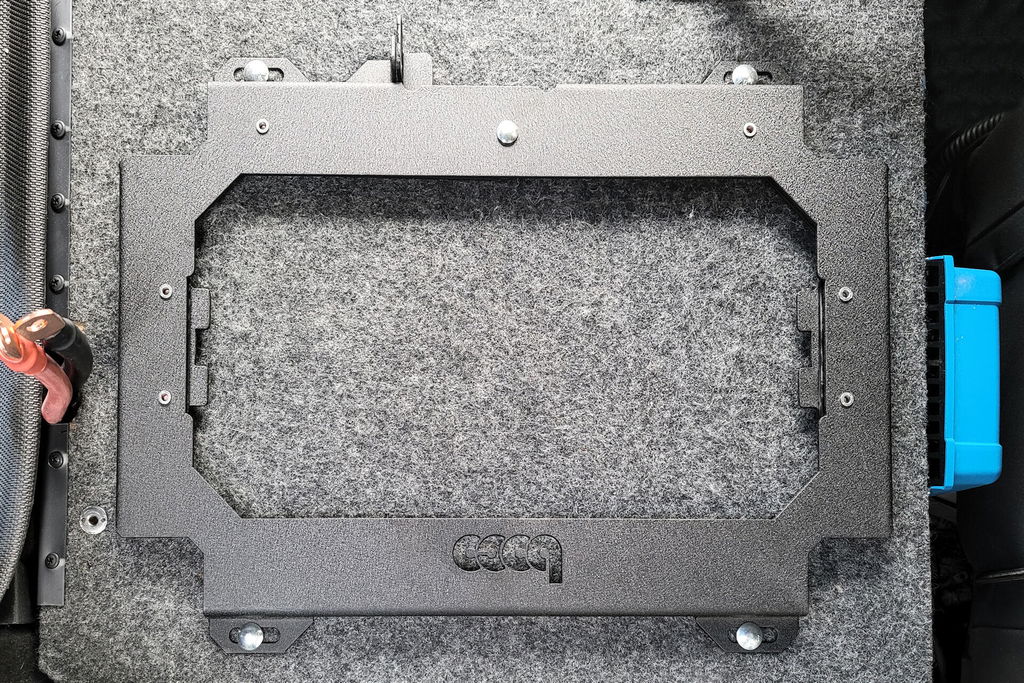

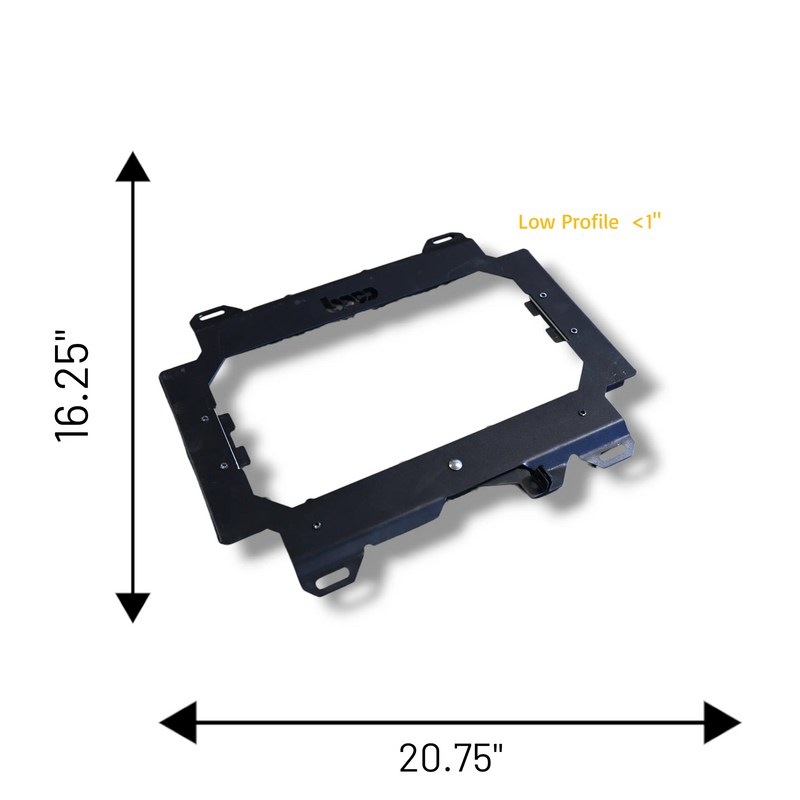

Husky Build-Out Locking Mounting Plate – 12-Gauge Steel, Fits All Boxes

A 12-gauge steel locking mounting plate that fits all Husky™ Build-Out™ boxes and organizers, regardless of latch style. It has an integrated arm that accepts a standard padlock (padlock not included) and a slide-in mechanism for one-handed access. Laser-cut in the USA and only 0.5 inches tall, it mounts to a wall or floor in service vans, enclosed trailers and shops.

Prefer a non-locking mount for boxes with the red latch handles? See the non-locking plate.

Load ratings assume appropriate hardware installed into a suitable structure.

Where it mounts: service vans, enclosed trailers, truck beds and workshop walls or floors.

Installation

1. Position the plate at your desired height or location and mark the mounting holes.
2. Secure it with appropriate fasteners for your surface (hardware not included).

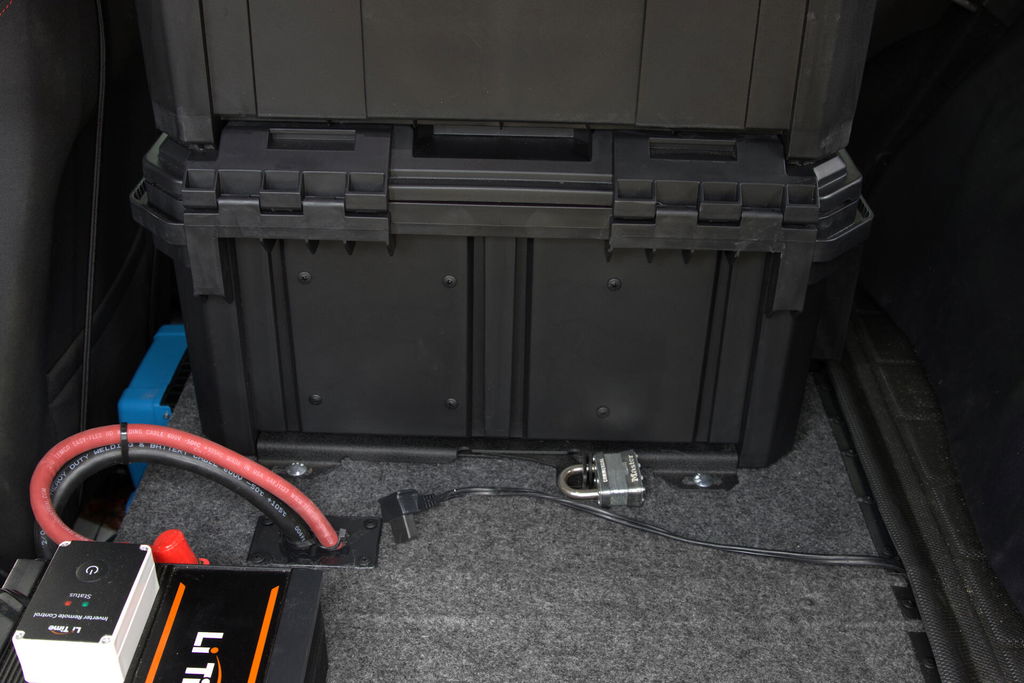

3. Slide your Husky box in until it latches, and add your own padlock to the locking arm if you want it secured.

Need a different hole pattern or size? We make custom mounts. Contact us with your requirements.

Why steel instead of plastic

• Built for vibration: 12-gauge steel is made for the vibration and shifting of vans, trailers and truck beds.
• No sacrificed toolbox lid: a dedicated steel plate replaces disassembling a spare box to use its lid as a mount.
• Low profile: at 0.5 inches tall it saves vertical storage space.
• Secure: the locking arm helps keep your whole stack from walking off.

Frequently Asked Questions

Which Husky Build-Out boxes does it fit?
All Husky Build-Out boxes and organizers, regardless of latch style.

Does it lock?
Yes. The integrated locking arm accepts a standard padlock to keep your stack secured to a vehicle or shop wall. A padlock is not included.

What weight can it hold?
75 lb on a wall mount and 150 lb on a floor mount. Ratings assume appropriate hardware installed into a suitable structure.

Why use a BOCO mount instead of disassembling a toolbox lid?
A lid mount means destroying a good box and relying on thin plastic tabs. This is a steel plate made for the job.

Can I mount it to a van floor or truck bed?
Yes. It is designed for multi-orientation use, including floor mounting in vans and truck beds, and the 12-gauge steel handles vibration and shifting.

What hardware does it use?
It works with 1/4" or 5/16" bolts. Many customers prefer a 5/16" carriage bolt for a tamper-resistant fit. Hardware is not included.

Do you make custom mounts?
Yes. If you need a different hole pattern or size, contact us with your requirements.

How long until it ships?
In-stock items ship within 1–2 business days. Made-to-order items ship in 1–2 weeks.

Shipping, returns and warranty: see our shipping policy, returns policy and warranty.

Want to cut your own?

We sell the DXF cut files as instant digital downloads for plasma, laser and waterjet machines. Husky Build-Out DXF file, DXF bundle (Packout, MODbox and Build-Out), or browse all DXF cut files.

Made in the USA — BOCO Custom LLC. Husky™ and Build-Out™ are trademarks of their respective owners. BOCO Custom LLC is not affiliated with or endorsed by them; brand names are used only to describe compatibility.

10-Gauge Mild Steel (0.1345" | A Little Over 1/8 Inch)

• Best For: Our Heavy-Duty plates: vehicle floors, truck beds, shop workbenches, and heavy modular tool stacks.
• The Advantage: Our stiffest steel. The extra thickness resists flexing, twisting, and rattling under heavy loads and daily job-site use, and it carries the highest load ratings we publish.

12-Gauge Mild Steel (0.1046" | About Two Stacked Dimes)

• Best For: Locking mounts for Husky Build-Out, Bauer, and DEWALT DXL, plus service vans, enclosed trailers, and standard shop layouts.
• The Advantage: A strong middle ground between strength and weight. It handles constant road vibration without adding unnecessary bulk to a mobile rig.

14-Gauge Mild Steel (0.0747" | About the Thickness of a Nickel)

• Best For: Light-Duty Packout plates, battery organizers, accessory mounts, and lightweight shelf accessories.
• The Advantage: A rigid, low-profile mount for lighter gear that keeps your layout clean and your weight down.

1/8-Inch Aluminum (0.125" | Light and Rust Resistant)

• Best For: Open truck beds, roof racks, exterior trailer sides, and wet or salty environments.
• The Advantage: Naturally rust resistant and about one third the weight of steel. It saves weight on a mobile rig and stands up to rain, snow, and road salt.

11-Gauge 304 Stainless Steel (About 0.125" | About 1/8 Inch)

• Best For: Exposed truck bed brackets, marine use, premium shop builds, and wet or corrosive environments.
• The Advantage: Strong, rigid 304 stainless that resists rust without paint or powder coat, even in road salt and harsh outdoor conditions. Available on select plates, made to order.

Note: Sheet metal gauge numbers run inversely. The lower the gauge number, the thicker and more rigid the metal.

We fabricate our mounting solutions and accessories from mild steel, aluminum, and 304 stainless steel, built for harsh job-site environments. Choose the right finish for your build and review our care recommendations below.

Uncoated Steel (Paint Ready)

• Overview: Shipped bare and untreated, straight from fabrication. Ideal for custom painting, powder coating, or welding into custom racks.
• Appearance: May show light mill scale, surface scuffs, or minor flash rust on delivery, which is normal for uncoated steel.
• Care & Maintenance: Uncoated steel will rust when exposed to moisture, humidity, or air. We strongly recommend cleaning and lightly sanding the surface, then applying paint, clear coat, or powder coat before installation.

Powder Coated

• Overview: A durable, baked-on powder coat finish that protects the steel against wear, corrosion, and UV exposure. Powder coat is made to order.
• Appearance: A smooth, uniform finish, textured black on most plates and red on select Packout plates, ready to install out of the box.
• Care & Maintenance: Clean with warm water, mild dish soap, and a soft microfiber cloth. Avoid solvents such as acetone or paint thinner, and avoid abrasive scrubbers, which can wear the coating. Touch up deep gouges or scratches promptly to protect the metal underneath.

Uncoated Aluminum

• Overview: A lightweight, naturally rust-resistant option, about one third the weight of steel. Ideal for open truck beds, work vans, and marine or wet environments.
• Appearance: Bare metal with a clean industrial look. Aluminum forms a thin protective oxide layer on its own. Light surface grain or manufacturing tool marks may be present.
• Care & Maintenance: Wash with automotive soap and water. Aluminum may dull or develop a light oxidation over time, which is normal. To restore the shine, use a standard aluminum polish.

Uncoated 304 Stainless Steel

• Overview: Strong and highly rust resistant, for exposed truck beds, marine use, and wet or corrosive environments. Available on select plates, made to order.
• Appearance: A clean, bare metal finish that needs no paint or coating.
• Care & Maintenance: Low maintenance. Clean with soapy water or a stainless steel cleaner to remove grease, road grime, and fingerprints. Avoid steel wool and chlorine-based cleaners, which can mark or pit the surface.
