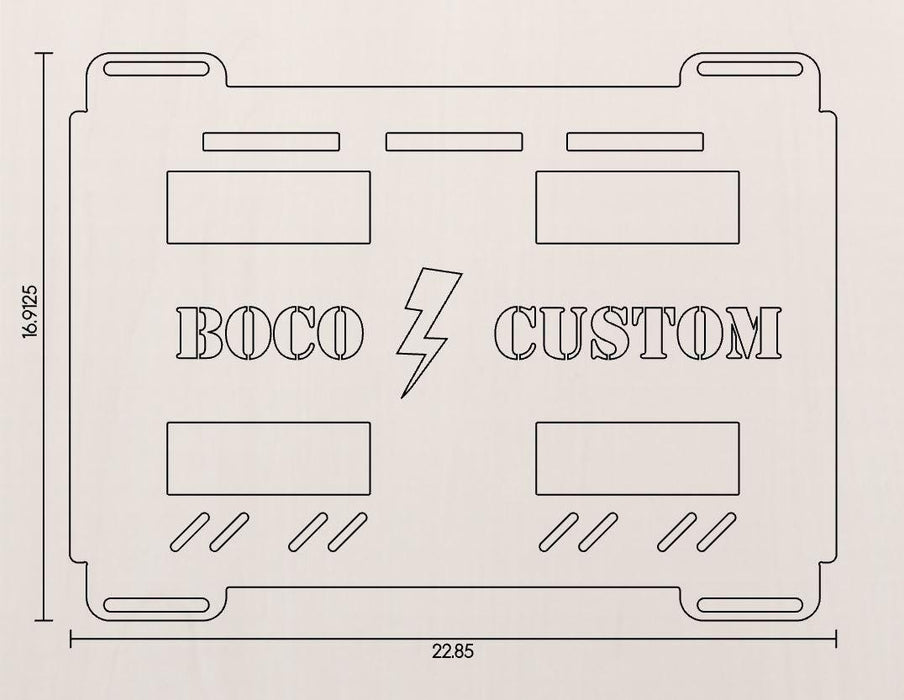

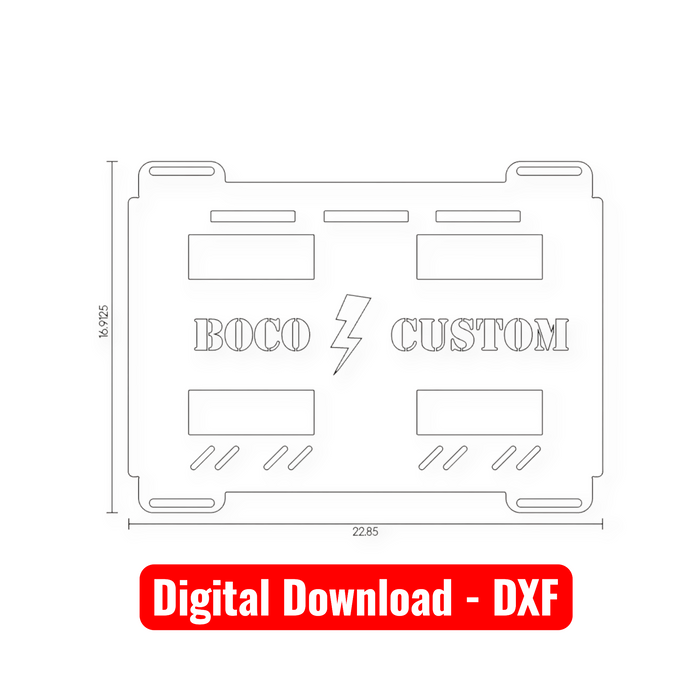

Klein MODbox Full Width Digital Download for CNC Cutting

Grab this precision DXF file and start cutting your Klein MODbox mounting plate right away on your Plasma, Laser, or Waterjet CNC machine. Designed and carefully verified right here in California, USA 🇺🇸 by BOCO Custom, this file delivers exact fits and clean cuts with no wasted material or alignment issues.

Ideal for fabricating durable steel versions for garage walls, truck beds, toolboxes, trailers, or shop organization.

Why you'll love this DXF
✅ Includes both Double/Full width cut file
✅ Compatible with Klein MODbox 1.0 and 2.0 systems
✅ Inches & Metric Formats — All files provided in both imperial and metric units for universal compatibility and easy scaling
✅ Ready-to-Cut Design — Pre-formatted, tested, and proven for immediate use—no cleanup or adjustments needed before cutting
✅ Flexible Gauge Options — Designed and tested on 10-gauge for heavy-duty strength and long-term durability
✅ Software Compatibility — Optimized for Aspire, Fusion 360, EnRoute, SheetCAM, LightBurn, and most CNC/plasma/laser software
✅ Instant Digital Download — Access files immediately after purchase—no waiting, start fabricating today

Usage & License
✅ You're welcome to use these files to create and sell your own finished physical products (e.g., mounting plates, custom storage solutions).
✅ Please do not resell, share, distribute, or modify and redistribute the DXF files themselves in any way—this protects the original design.

Important Digital Product Info
➤ This is a digital download only – no physical item will be shipped.
➤ File delivered via Etsy instant download link (ZIP if multiple files).
➤ As a digital product, all sales are final and non-refundable.

What's Included
➤ High-quality DXF files (dual variations, inches primary + metric layers) (No physical item)

Download now and fabricate reliable MODbox mounts with pro-level precision. Your shop or garage setup deserves designs that perform. 🛠️

Thanks for supporting a small USA maker! And remember, we support you too! If you run into any issues with the file (e.g., compatibility or download problems), please message us right away — We're here to help get you cutting successfully!

Precision DXF Files for Clean CNC Results

The Klein MODbox Full Width Digital Download is designed for makers who want accurate, ready-to-use DXF files for CNC cutting. This product helps simplify your workflow by giving you a digital file format that works well with most CNC machines and cutting setups. Whether you are building custom shop storage, organizing tools, or creating a matching project piece, these files support clean edges and reliable cuts. The layout is made for efficient production, helping reduce mistakes and save setup time. It is a practical choice for fabricators, DIY users, and workshop professionals who need dependable digital cutting plans.

Easy Digital Download for Fast Project Start

With the Klein MODbox Full Width Digital Download, you can begin your project right after purchase. There is no waiting for shipping, no physical material to inspect, and no extra handling steps. Simply download the file, load it into your CNC software, and start cutting. This makes it ideal for quick turnaround jobs or repeat production runs. The digital format is convenient for users who want flexibility and speed in their process. It also helps keep your project organized because the file can be stored, reused, and shared easily across workstations or future builds.

Built for Makers, Fabricators, and Workshop Projects

This product is a strong fit for anyone working in a garage shop, fabrication business, or home workshop. The Klein MODbox Full Width Digital Download supports a wide range of CNC cutting applications and can be used as part of custom storage or tool organization projects. It is especially useful for builders who value consistency and want files that are easy to follow. The design is intended to help you produce professional-looking results without complicated steps. If you need a reliable digital file for practical, repeatable cutting work, this download gives you a solid starting point for efficient production and quality output.

10-Gauge Steel (0.1345" | Thickness of Two Stacked Dimes)

• Best For: Heavy-duty commercial wall mounts, shop workbenches, and massive modular tool stacks.
• The Advantage: Extreme structural stiffness. This ultra-thick steel completely eliminates flexing, twisting, and tool rattling, making it the definitive choice for demanding daily job-site use.

12-Gauge Steel (0.1046" | Thickness of a Standard House Key)

• Best For: Mobile service vans, enclosed trailers, and standard shop organization layouts.
• The Advantage: The ultimate sweet spot between bulletproof strength and smart weight distribution. It handles constant over-the-road vibrations flawlessly without adding unnecessary bulk to your mobile rig.

14-Gauge Steel (0.0747" | Thickness of a Nickel)

• Best For: Handheld battery organizers, small tool holsters, and lightweight shelf accessories.
• The Advantage: High-tensile rigidity in a streamlined profile. It provides a rock-solid, permanent mount for smaller gear while keeping your workspace layout clean and low-profile.

8-Gauge Aluminum (0.1285" | Heavy-Duty Marine Grade)

• Best For: Open truck beds, roof racks, exterior trailer sides, and high-moisture environments.
• The Advantage: Maximum corrosion resistance with severe weight savings. Shaved pounds keep your mobile fuel efficiency optimized while remaining completely immune to rain, snow, and road salt oxidation.

10-Gauge Stainless Steel (0.1345" | Thickness of Two Stacked Dimes)

• Best For: Premium exposed truck bed brackets, marine applications, high-end shop builds, and ultimate weather protection.
• The Advantage: Combines the absolute, unyielding structural rigidity of our thickest 10-gauge plate with total lifetime corrosion resistance. It requires no paint or powder coat to stay 100% immune to rust, road salt, and harsh outdoor elements.

Note: Sheet metal gauge numbers run inversely—the lower the gauge number, the thicker and more rigid the actual metal substrate is.

We fabricate our mounting solutions and accessories using commercial-grade materials built for harsh environments. Choose the right finish for your build and review our care recommendations below:

Powder Coat Finish

• What it is: An industrial-grade, chip-resistant finish applied over media-blasted metal. Ready to install out of the box and engineered to survive heavy daily tool friction.
• Care: Low maintenance. Wipe down occasionally with a damp microfiber cloth to remove dust or workspace grime. Avoid using harsh chemical solvents or abrasive pads that could scratch the protective coating.

Raw Steel (Uncoated)

• What it is: Shipped as premium raw American steel that has been completely precision laser-cut, sanded, and deburred. Perfect for fabrication shops or DIYers who want to weld the brackets directly to a rig or custom paint them.
• Care: Requires immediate protection. Apply a clear coat or paint immediately after receiving to prevent surface oxidation (rust). Once coated, maintain with occasional wipe-downs using a dry cloth.

Painted Finish

• What it is: A clean, cost-effective protective coating applied in-house. Perfect for everyday indoor workspace use or setups that won't see extreme, heavy-duty metal-on-metal abrasion.
• Care: Moderate maintenance. Clean with a soft, damp cloth. Avoid harsh chemical solvents, degreasers, or abrasive scrubbing pads, as these can wear down or dull the paint over time. Minor touch-ups can easily be done with standard matching automotive or metal spray paint if scratched.

Aluminum (Uncoated)

• What it is: Premium, lightweight raw American aluminum that has been precision laser-cut and deburred. It offers excellent natural corrosion resistance without adding unnecessary weight to your mobile rig or vehicle setup.
• Care: Low maintenance. While it won't rust like raw steel, uncoated aluminum will naturally develop a dull patina over time when exposed to the elements. To maintain its bright, metallic shine, occasionally clean it with a dedicated aluminum cleaner or a light scotch-brite pad.

304 Stainless Steel

• What it is: Premium marine-grade stainless steel that is 100% rust-proof for life. Perfect for extreme outdoor environments, saltwater exposure, or applications where zero maintenance is required.
• Care: Virtually maintenance-free. Occasional rinses with fresh water in saltwater environments help maintain the pristine finish. No coating or paint needed—ever.
