SKU MS14R

Milwaukee Packout Half-Width Light-Duty Mounting Plate – 14-Gauge Steel

Original price $35.00 - Original price $135.00
Original price
$35.00
$35.00 - $135.00
Current price $35.00
Material Steel
Finish Raw

Manufactured with Pride in the USA

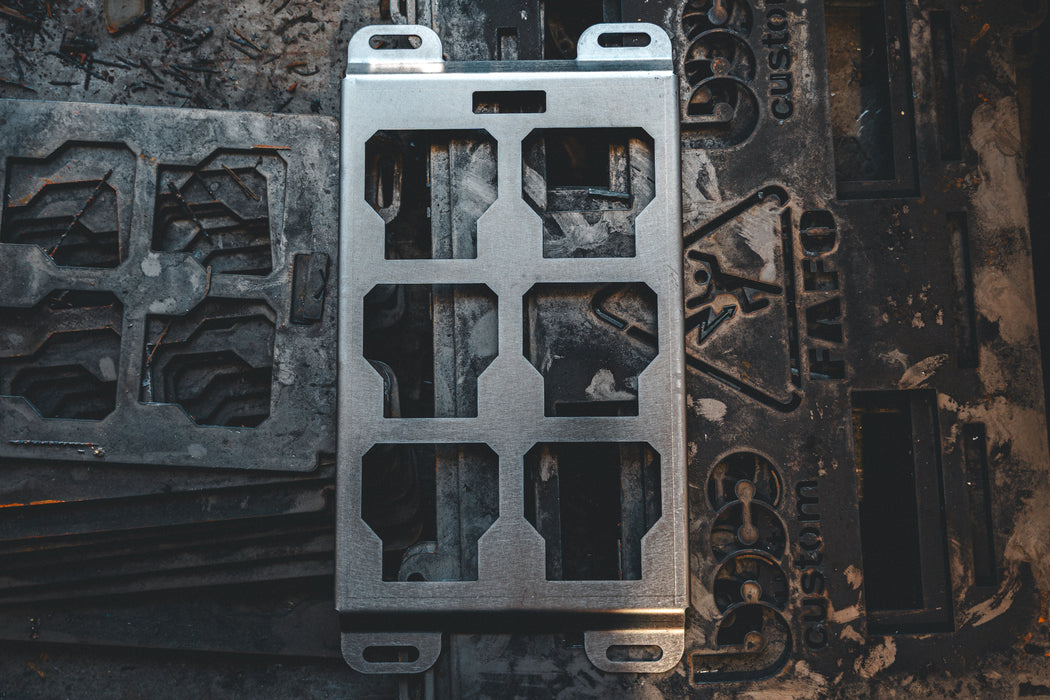

A 14-gauge steel half-width (single) mounting plate for Milwaukee® PACKOUT™ boxes. Laser-cut in Apple Valley, California, it is rated for 50 lb on a wall and 75 lb on a floor and only 0.5 inches tall, which saves space in enclosed cabinets, under shelves, on walls and in tight service van layouts. Its ultra low profile and small footprint make it a favorite for contractor van upfitting and cargo trailer organization, eliminating dead space so your tools stay organized, secure and efficient.

Fits Milwaukee PACKOUT half-width (single) boxes. Comparable to Milwaukee 48-22-8496 compact wall plate.
Material 14-gauge mild steel (about 0.075") or 11-gauge 304 stainless steel
Size 16.875" × 8.875" × 0.5"
Wall load 50 lb (mild steel)
Floor load 75 lb (mild steel)

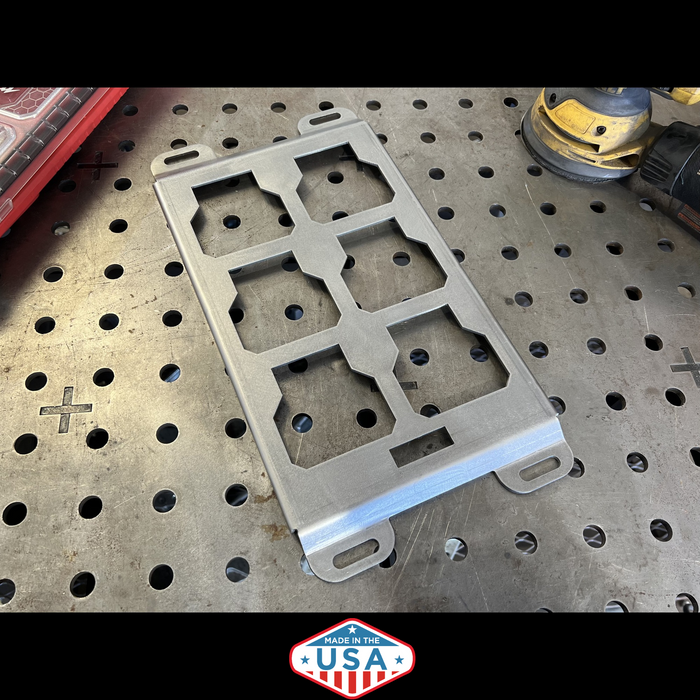

Finish Uncoated (paint ready), textured black powder coat, red powder coat or 304 stainless
Finish care: raw steel will oxidize. For outdoor or damp use, choose powder coat or paint the uncoated plate right away.

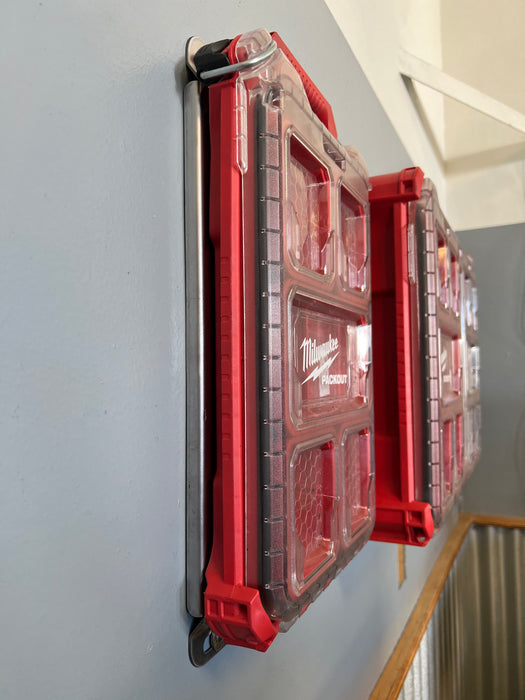

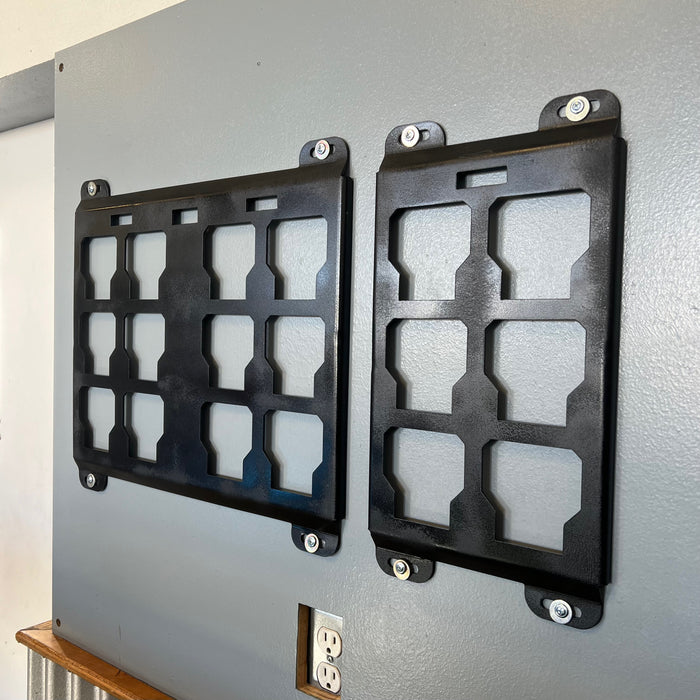

Mounting Wall or floor mount. Use 1/4" hardware.
Hardware Not included
Shipping In stock: 1–2 business days. Made to order: 1–2 weeks.
Origin Made in USA (Apple Valley, CA)

Load ratings assume appropriate hardware installed into a suitable structure. Stainless ratings are not yet published.

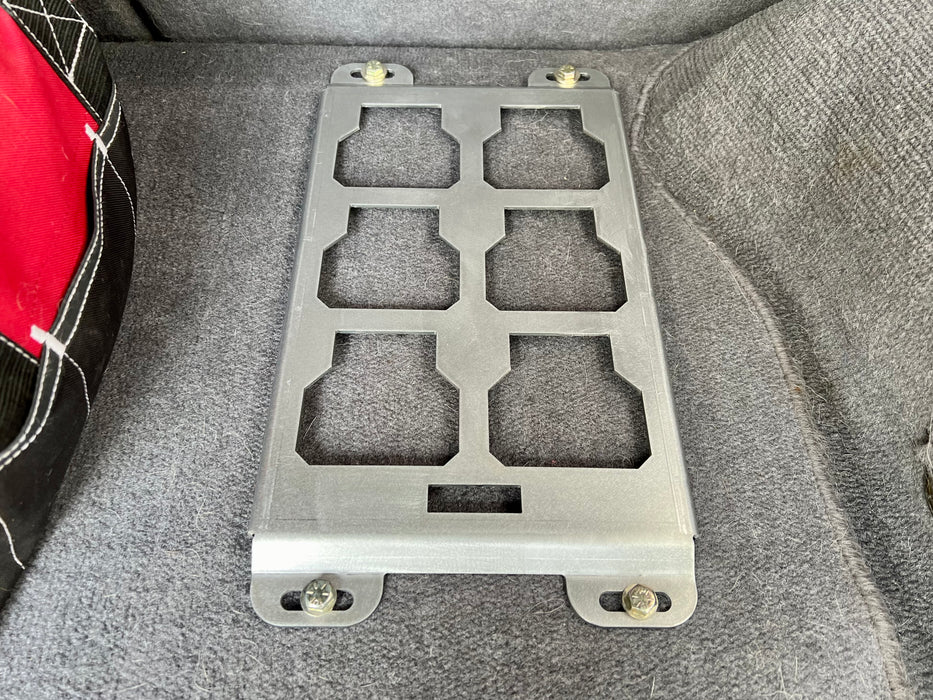

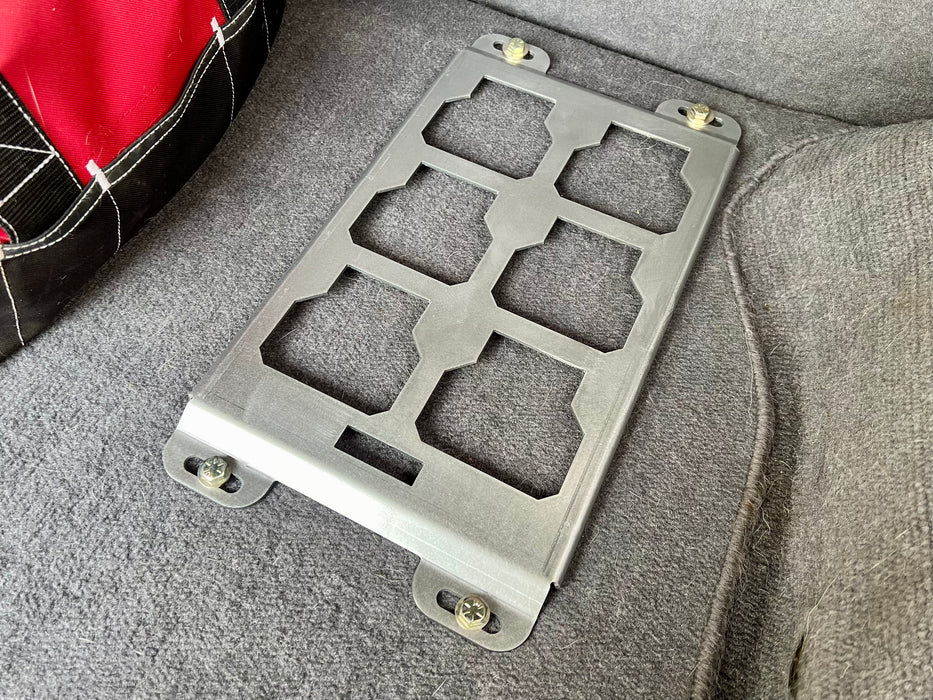

Where it mounts: contractor vans, cargo trailers, utility trailers, truck beds, shops and garages. It bolts to any flat mounting surface, wall or floor, including truck beds, bed racks, contractor and cargo vans, cargo and utility trailers, UTV and side-by-side beds, shop walls, workbenches and shelves.

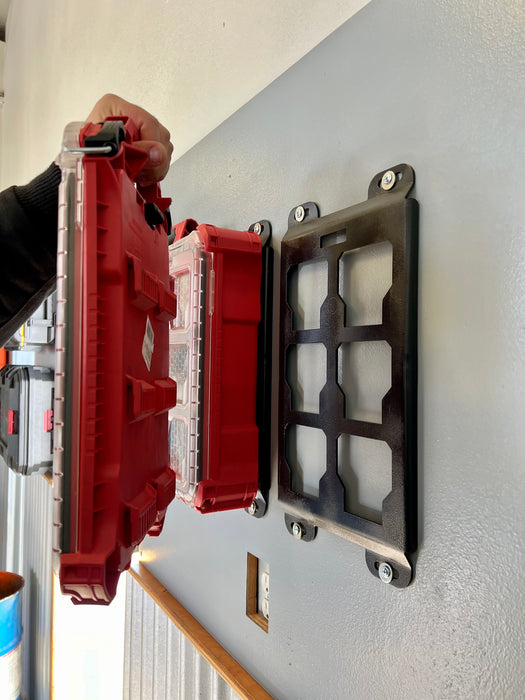

Installation

  1. Position the plate and mark the mounting holes.
  2. Fasten with 1/4" hardware suited to your surface (hardware not included).

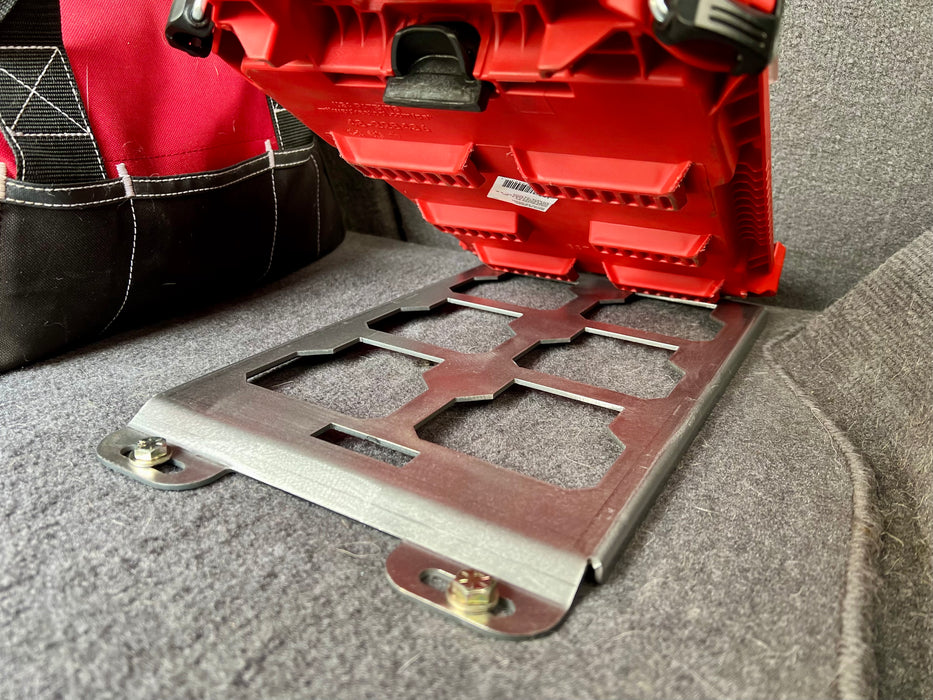

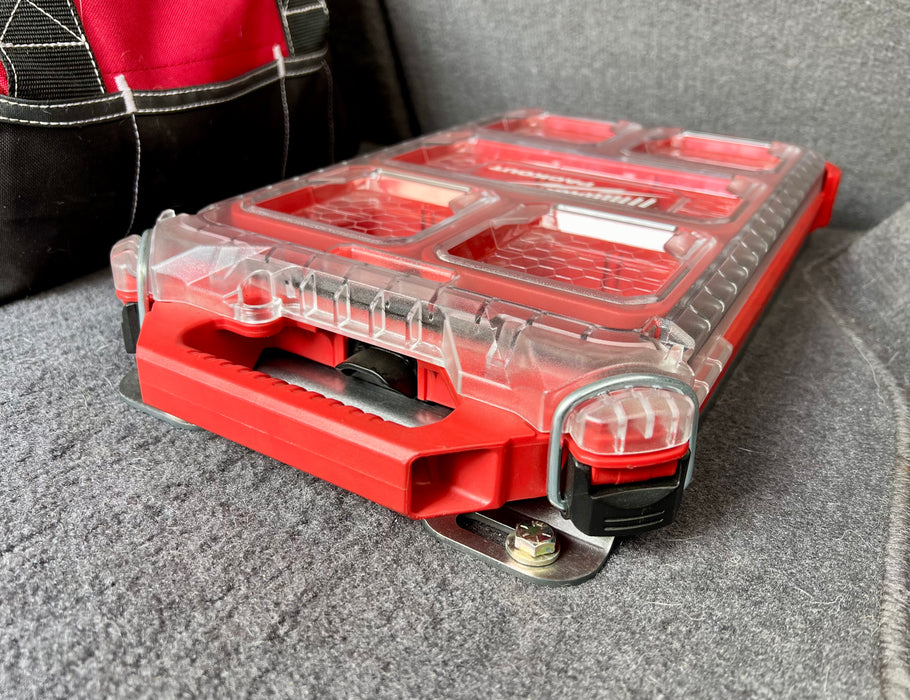

  3. Slide your PACKOUT box into place until it clicks.

Need a different hole pattern or size? We make custom mounts. Contact us with your requirements.

Why steel instead of plastic

  • Low profile: 0.5 inches tall keeps your stack low.
  • Steel construction: a solid foundation that far surpasses plastic mounting plates.
  • Finish options: uncoated for custom fabrication, powder coat for a clean shop-ready look, or 304 stainless for added corrosion resistance outdoors or in wet conditions.
  • Need more strength? See the 10-gauge Heavy-Duty plate, which carries a higher rating.

Frequently Asked Questions

What weight can it hold?
50 lb on a wall mount and 75 lb on a floor mount. Ratings assume appropriate hardware installed into a suitable structure.

Is mounting hardware included?
No. Mounting surfaces vary, so choosing the correct hardware for the installation is up to the end user or installer.

Do you make custom mounts?
Yes. If you need a different hole pattern or size, contact us with your requirements.

How long until it ships?
In-stock items ship within 1–2 business days. Made-to-order items ship in 1–2 weeks.

Shipping, returns and warranty: see our shipping policy, returns policy and warranty.

Want to cut your own?

We sell the DXF cut files as instant digital downloads for plasma, laser and waterjet machines. Half-width Packout DXF, Full and half-width DXF bundle, or browse all DXF cut files.

Made in the USA — BOCO Custom LLC. Milwaukee® and PACKOUT™ are trademarks of their respective owners. BOCO Custom LLC is not affiliated with or endorsed by them; brand names are used only to describe compatibility.

  • 10-gauge steel (0.135"): our thickest. Heavy loads, truck beds, workbenches.
  • 12-gauge steel (0.105"): mid-weight. Vans, trailers, everyday shop use.
  • 14-gauge steel (0.075"): light duty. Lighter gear and accessory mounts.
  • 1/8" aluminum (0.125"): light and rust resistant.
  • 11-gauge 304 stainless (0.125"): rust resistant without paint, made to order.

Lower gauge number = thicker metal. See the full thickness guide with a visual comparison

We fabricate our mounting solutions and accessories from mild steel, aluminum, and 304 stainless steel, built for harsh job-site environments. Choose the right finish for your build and review our care recommendations below.

Uncoated Steel (Paint Ready)

  • Overview: Shipped bare and untreated, straight from fabrication. Ideal for custom painting, powder coating, or welding into custom racks.
  • Appearance: May show light mill scale, surface scuffs, or minor flash rust on delivery, which is normal for uncoated steel.
  • Care & Maintenance: Uncoated steel will rust when exposed to moisture, humidity, or air. We strongly recommend cleaning and lightly sanding the surface, then applying paint, clear coat, or powder coat before installation.

Powder Coated

  • Overview: A durable, baked-on powder coat finish that protects the steel against wear, corrosion, and UV exposure. Powder coat is made to order.
  • Appearance: A smooth, uniform finish, textured black on most plates and red on select Packout plates, ready to install out of the box.
  • Care & Maintenance: Clean with warm water, mild dish soap, and a soft microfiber cloth. Avoid solvents such as acetone or paint thinner, and avoid abrasive scrubbers, which can wear the coating. Touch up deep gouges or scratches promptly to protect the metal underneath.

Uncoated Aluminum

  • Overview: A lightweight, naturally rust-resistant option, about one third the weight of steel. Ideal for open truck beds, work vans, and marine or wet environments.
  • Appearance: Bare metal with a clean industrial look. Aluminum forms a thin protective oxide layer on its own. Light surface grain or manufacturing tool marks may be present.
  • Care & Maintenance: Wash with automotive soap and water. Aluminum may dull or develop a light oxidation over time, which is normal. To restore the shine, use a standard aluminum polish.

Uncoated 304 Stainless Steel

  • Overview: Strong and highly rust resistant, for exposed truck beds, marine use, and wet or corrosive environments. Available on select plates, made to order.
  • Appearance: A clean, bare metal finish that needs no paint or coating.
  • Care & Maintenance: Low maintenance. Clean with soapy water or a stainless steel cleaner to remove grease, road grime, and fingerprints. Avoid steel wool and chlorine-based cleaners, which can mark or pit the surface.

What is Proposition 65?

Proposition 65 (officially the Safe Drinking Water and Toxic Enforcement Act of 1986) is a California law. It requires businesses to warn California consumers if a product can expose them to chemicals that the State of California lists as causing cancer, birth defects, or other reproductive harm.

These warnings are required even when a chemical is present in very small amounts that may not pose a significant health risk.

California Proposition 65 Warning

⚠️ WARNING: Cancer and Reproductive Harm. Products sold on this website can expose you to chemicals including lead, nickel, chromium (hexavalent compounds), titanium dioxide (airborne, unbound particles of respirable size), toluene, ethylbenzene, and formaldehyde, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

What our products are made from

Depending on the product, our items may include steel, aluminum, powder coat or paint (including spray paint), threadlocker, lithium grease, and plastics such as acrylic and acetal (Delrin). Metals and coatings can contain or release trace amounts of the chemicals above, especially during cutting, welding, sanding, or coating.

Why is this warning on my order?

BOCO Custom LLC ships products nationwide, so we include this warning to comply with California law. A Proposition 65 warning does not mean a product is unsafe or defective. It means a product may contain a trace amount of a listed chemical. We provide this information so you can make an informed purchase.
