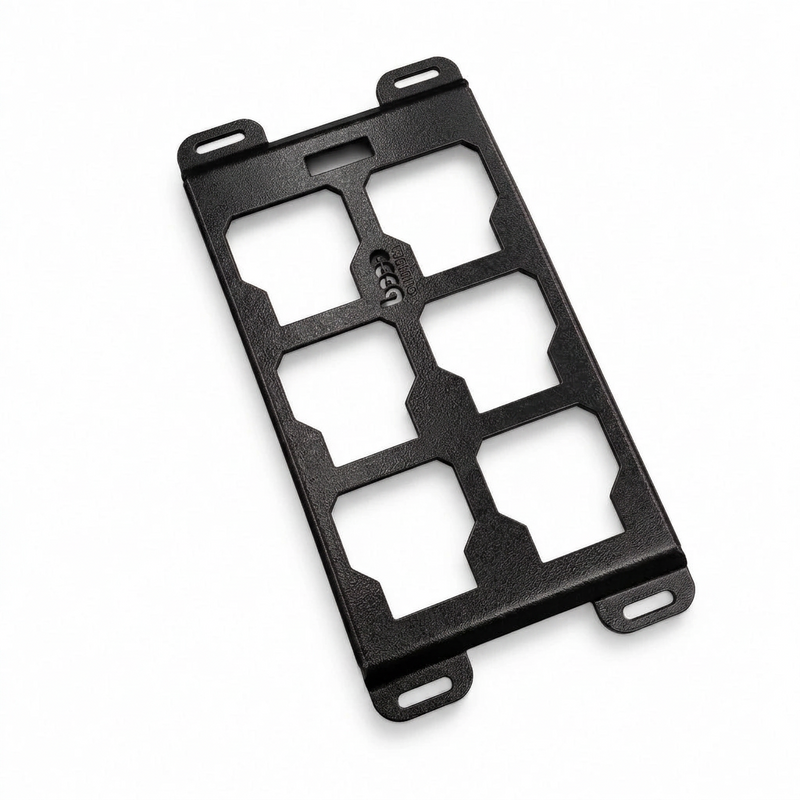

Milwaukee Packout Light-Duty Mounting Plate – 14-Gauge Steel, Full or Half Width

A 14-gauge steel mounting plate for Milwaukee® PACKOUT™ boxes, available in full width (dual-width boxes) and half width (single boxes). Laser-cut in Apple Valley, California and only 0.5 inches tall, it leaves maximum clearance for drawers and organizers in vans, trailers and shop shelving. At 14 gauge (about 0.075"), it is a lighter, lower-cost option for shelving, vans, trailers and shop walls where the extra strength of our 10-gauge Heavy-Duty plate is not needed.

All options

Full width

Half width: top & bottom pattern

Half width: side mount pattern

Load ratings assume appropriate hardware installed into a suitable structure.

Where it mounts: service truck beds, enclosed trailers, workbenches, shop walls, off-road trailers and side-by-side vehicles.

Installation

1. Position the plate and line the holes up with your studs or frame rails.
2. Secure it with 1/4" hardware suited to your surface (hardware not included).
3. Slide your PACKOUT box into place until it clicks.

Need a different hole pattern or size? We make custom mounts. Contact us with your requirements.

Why steel instead of plastic

• Steel, not plastic: 14-gauge steel holds up to daily jobsite use and is far more durable than plastic factory options.
• Need more strength? Step up to the 10-gauge Heavy-Duty plate, which carries a higher rating.
• Low profile: 0.5 inches tall keeps your stack low in tight van builds.
• Finish options: uncoated for welding or custom work, powder coat for a ready-to-mount look. Want aluminum or stainless? See our Aluminum and Stainless plates.

Frequently Asked Questions

Which Milwaukee boxes does it fit?
Choose Full for PACKOUT full-width (dual-width) boxes and organizers, or Half for half-width (single) boxes.

What weight can it hold?
Full width: 75 lb wall, 150 lb floor. Half width (14-gauge steel): 50 lb wall, 75 lb floor. Ratings assume appropriate hardware installed into a suitable structure.

Which mounting pattern should I choose (half width)?
Standard Top & Bottom has holes at 16" centers on the length and 6" on the width. Side Mount has holes at 11" centers on the length and 10" on the width.

Is mounting hardware included?
No. Mounting surfaces vary, so choosing the correct hardware for the installation is up to the end user or installer.

Do you make custom mounts?
Yes. If you need a different hole pattern or size, contact us with your requirements.

How long until it ships?
In-stock items ship within 1–2 business days. Made-to-order items ship in 1–2 weeks.

Shipping, returns and warranty: see our shipping policy, returns policy and warranty.

Want to cut your own?

We sell the DXF cut files as instant digital downloads for plasma, laser and waterjet machines. Full-width Packout DXF, Half-width Packout DXF, Full and half-width DXF bundle, or browse all DXF cut files.

Made in the USA — BOCO Custom LLC. Milwaukee® and PACKOUT™ are trademarks of their respective owners. BOCO Custom LLC is not affiliated with or endorsed by them; brand names are used only to describe compatibility.

• 10-gauge steel (0.135"): our thickest. Heavy loads, truck beds, workbenches.
• 12-gauge steel (0.105"): mid-weight. Vans, trailers, everyday shop use.
• 14-gauge steel (0.075"): light duty. Lighter gear and accessory mounts.
• 1/8" aluminum (0.125"): light and rust resistant.
• 11-gauge 304 stainless (0.125"): rust resistant without paint, made to order.

Lower gauge number = thicker metal. See the full thickness guide with a visual comparison

We fabricate our mounting solutions and accessories from mild steel, aluminum, and 304 stainless steel, built for harsh job-site environments. Choose the right finish for your build and review our care recommendations below.

Uncoated Steel (Paint Ready)

• Overview: Shipped bare and untreated, straight from fabrication. Ideal for custom painting, powder coating, or welding into custom racks.
• Appearance: May show light mill scale, surface scuffs, or minor flash rust on delivery, which is normal for uncoated steel.
• Care & Maintenance: Uncoated steel will rust when exposed to moisture, humidity, or air. We strongly recommend cleaning and lightly sanding the surface, then applying paint, clear coat, or powder coat before installation.

Powder Coated

• Overview: A durable, baked-on powder coat finish that protects the steel against wear, corrosion, and UV exposure. Powder coat is made to order.
• Appearance: A smooth, uniform finish, textured black on most plates and red on select Packout plates, ready to install out of the box.
• Care & Maintenance: Clean with warm water, mild dish soap, and a soft microfiber cloth. Avoid solvents such as acetone or paint thinner, and avoid abrasive scrubbers, which can wear the coating. Touch up deep gouges or scratches promptly to protect the metal underneath.

Uncoated Aluminum

• Overview: A lightweight, naturally rust-resistant option, about one third the weight of steel. Ideal for open truck beds, work vans, and marine or wet environments.
• Appearance: Bare metal with a clean industrial look. Aluminum forms a thin protective oxide layer on its own. Light surface grain or manufacturing tool marks may be present.
• Care & Maintenance: Wash with automotive soap and water. Aluminum may dull or develop a light oxidation over time, which is normal. To restore the shine, use a standard aluminum polish.

Uncoated 304 Stainless Steel

• Overview: Strong and highly rust resistant, for exposed truck beds, marine use, and wet or corrosive environments. Available on select plates, made to order.
• Appearance: A clean, bare metal finish that needs no paint or coating.
• Care & Maintenance: Low maintenance. Clean with soapy water or a stainless steel cleaner to remove grease, road grime, and fingerprints. Avoid steel wool and chlorine-based cleaners, which can mark or pit the surface.
